1.ACQ Pressure-Treated Wood:
we use ACQ-treated wood. Both CCA and ACQ are pressure-treated woods commonly used in outdoor playground equipment, wooden swing sets, and wooden playground structures. However, there are fundamental differences between the two in terms of composition, safety, market acceptance, and cost. CCA offers strong preservative performance and a lower cost, but it contains arsenic and has been restricted for use in children’s and residential applications. ACQ is arsenic-free, more environmentally friendly, and is the mainstream choice for children’s playground equipment in the European and North American markets.
2.Wooden Playground Equipment Manufacturing Processes:

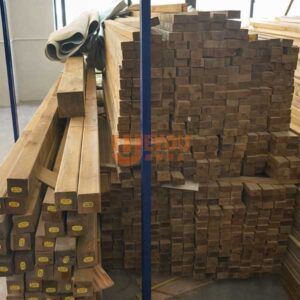

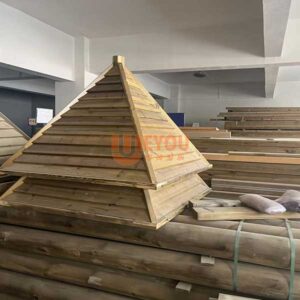

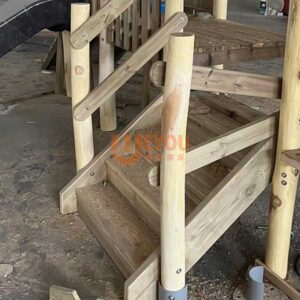

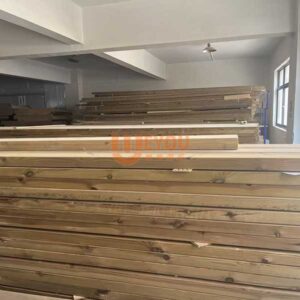

2.1 Raw Wood Selection
Carefully selected raw wood with a stable structure is used, undergoing strict inspection to eliminate materials with cracks, insect damage, excessive knots, or improper moisture content, ensuring excellent structural strength, durability, and safety for outdoor playground use.
2.2 Kiln Drying
Kiln drying is applied to precisely control moisture content and enhance dimensional stability, effectively minimizing the risk of cracking, warping, and deformation under long-term outdoor exposure. This process helps ensure consistent performance and long-term durability in outdoor playground environments.

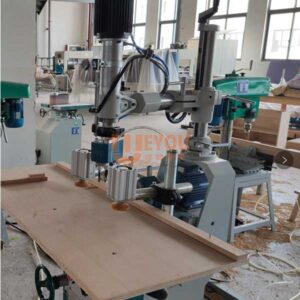

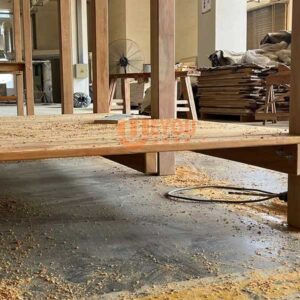

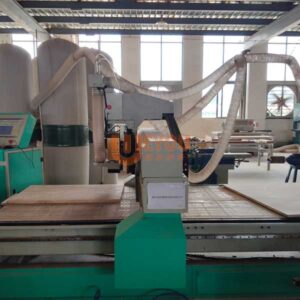

2.3 Cutting & Shaping
The wood is precisely cut and shaped according to the slide structure, ensuring consistent dimensions for accurate assembly. This process also improves overall structural stability and installation efficiency.
2.4 ACQ Pressure Treatment
ACQ pressure treatment is applied to deeply penetrate the wood, providing excellent resistance to rot, insects, and decay. The process is arsenic-free and environmentally friendly, making it safe for children’s playground equipment.
2.5 Post-Treatment Conditioning
After treatment, the wood undergoes conditioning and re-drying to enhance stability and extend its outdoor service life. This process helps maintain consistent quality and reduces the risk of movement or deformation over time.

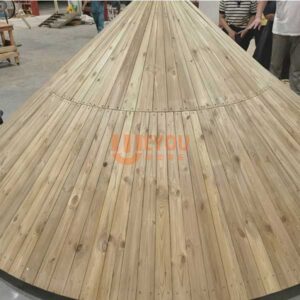

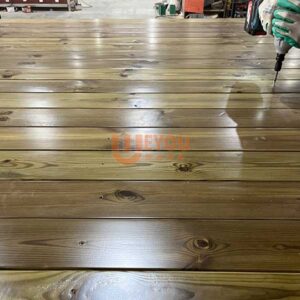

2.6 Sanding & Finishing
All contact surfaces are carefully sanded to remove burrs and sharp edges, ensuring safety and a smooth touch for children. This finishing process also enhances overall comfort and improves the user experience during play.

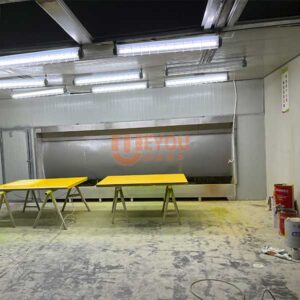

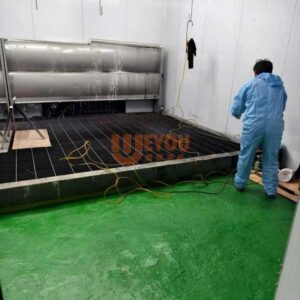

2.7.Surface Protection
Eco-friendly outdoor coatings or waterproof treatments are applied as required to enhance weather resistance and appearance. These treatments help protect the wood surface from moisture, UV exposure, and daily wear in outdoor environments.
2.8.Quality Inspection
All wooden components are strictly inspected before use to ensure compliance with playground and export safety standards. This final inspection guarantees consistent quality and reliable performance for every playground structure.
We use ACQ pressure-treated wood, which is arsenic-free and environmentally friendly, making it safe and suitable for children’s outdoor playground equipment in accordance with international safety standards.
Safety & Certifications
GS Certificate Issued by TUV SUD
WeYou playgrounds are designed and manufactured in compliance with European Norm (EN1176-1:2008) so as to minimize the injury hazards during play, as we understand how critical it would be to the business of our customers.
Our outdoor slides are fully certified to meet international safety standards, including EN 1176 and related national requirements. Each product has passed rigorous testing for structural stability, anti-entrapment, and material safety, ensuring every play experience is both fun and secure.
Finger Entrapment requirements
Small Finger Probe diameter：8 mm Big Finger Probe diameter：25 mm,the size should be less 8mm or more 25mm
Head and Neck Entrapment Standard
The equipment must not contain structures or openings that could cause a child’s head or neck to become entrapped. Pay particular attention to slide entrances, climbing platform railings, and the area where the chute edge connects to the handrail. All openings accessible to, climbable by, or probing by children must be tested for entrapment.
If a small probe can fit through the opening, but a large probe cannot, with an aperture range of 45 mm–230 mm, the equipment is considered to have a entrapment or neck entrapment hazard.
If both probes can fit through, or neither can fit through, with a safety aperture size of less than 45 mm or greater than 230 mm, the equipment is considered safe
Entanglement Protection Requirements
There shall be no structures that may cause entanglement of children’s clothing drawstrings, necklaces, hair, or similar items.
Typical inspection areas:
1.Slide handrails, connectors, and pipe joints:
Check for gaps or protruding bolts. Use smooth caps to maintain a rounded shape.
2.Openings in slide exit guardrails:
If the openings form circular holes with diameters between 8–25 mm, they should be closed off or modified to a non-circular shape.
3.Rope net connection ends:
Check for protruding metal connectors or knots. Protective sleeves should be added, or the protruding parts should be shortened.
4.Decorative accessories (such as connector, nut caps, etc.):
If they create spaces that could cause entanglement, they should be designed as enclosed or flexible structures.
EN1176-3
For the slide start section or fence of the attached slide to extend onto the platform, the portion between the platform and the rung needs to meet the requirements of the platform.
Note 2: This requirement includes the height of the guardrail or fence.
Illustration of the position of the slides
A slide start section (measured from the slide plane)
B Slide section (measured from the plane of the slide)
C slide exit section (measured from the slide plane)
Maximum inclination of the sliding segment
Maximum inclination of the starting segment 4.3 Starting segment
Note: See Figure 2 for the starting segment and the sliding segment.
4.3.1 Length and angle
The starting segment of each slide is at least 350 mm long and the downward angle of the starting segment is between 0 and 5 degrees (measured from the centerline of the starting segment)
Note: For ancillary slides, the platform can be used as a starting segment.
Sliding section width test
When testing according to Figures 3 and 5b) (wide slide), straight slide, without tunnel, when the sliding section exceeds 1500 mm, there should be a width requirement:
a) less than 700 mm
b) greater than 950 mm
For multi-track slides, each individual slide has a width of less than 700 mm.
When tested according to Figure 3, the width of the spiral slide and the curved slide (see Figure 4) should be less than 700 mm.
Our outdoor slides are designed and manufactured in strict accordance with international safety standards. Every component—from plastic parts to metal structures—undergoes thorough testing to ensure durability, stability, and child safety. You can trust that our products are built to provide a safe, reliable, and worry-free play experience.
Installation & Maintenance
We provide detailed assembly instructions to make sure that our customers could Install the playgrounds on their own.
We provide comprehensive instruction manuals for all our outdoor slides to ensure a safe, smooth, and enjoyable installation process.
Each manual includes:
Step-by-step assembly guidance, clearly illustrated to make installation straightforward for installers or end users.
Safety instructions, highlighting areas prone to entrapment, pinch points, or other potential hazards, to ensure childre’s play is always secure.
Maintenance tips and care recommendations, including how to inspect hardware, clean surfaces, and prolong the life of the slide.
Our goal is to provide not just a high-quality outdoor slide, but also all the support needed so that every setup is safe, durable, and worry-free for children and parents alike.
Detailed Manuals-Assembly Instructions （sample）
Our slides can be installed with either in-ground anchoring or expansion bolts on concrete. We provide detailed installation instructions, and our team can also offer on-site or remote installation support if needed.
If your grouond is concrete, we recommend choosing surface mount type, please ensure the concrete is 15cm thick. If the concrete is too thin, the expansion screws can crack or crumble under stress (especially upward pull and lateral rocking forces), rendering the anchor ineffective and potentially causing the slide to tip over.
If your ground is grass or sand, we recommend choosing inground type. This requires digging some 30-60cm deep pits and then pouring concrete to fix it when installing
both are very secure; it all depends on the type of floor you have.
1.Inground type: lengthen the posts,for soft ground, like grass ground, choose inderground type
2. Surface mount type: for hard ground, like concrete, choose surface mount type
How to maintain
1. After a slide is out of service, staff should inspect it before reopening. No exposed sharp edges, corners, or burrs should be present in any areas accessible to users. Cracks, deformations, breaks, or excessively smooth joints should be present. Any abnormalities should be repaired promptly.
2. During operation, the slide’s exterior will accumulate dust and should be cleaned regularly with a standard detergent to ensure a smooth surface finish.
3. In severe weather, such as hail, the slide should be covered with a colored cloth in advance to protect the surface from damage.
4. During periods of outage, the slide’s steel structure should be inspected for corrosion. If extensive deterioration of the anti-corrosion paint is observed, all steel structures should be treated with anti-corrosion treatment immediately.
5. Inspect the slide’s fasteners and tighten any loose bolts.
Daily Care – Keep It Safe Every Day
1.Check the slide surface for cracks, damage or sharp edges
2.Make sure all platforms, handrails, and steps are stable.
3.Remove leaves, sand, or water from the slide surface.Make sure the area around the slide is free of obstacles and sharp objects
Monthly Inspection – Check the Structure
Check all metal joints, welds, and supports for cracks or rust.
Check whether the slide and ground fixings (such as expansion bolts, ground anchors) are stable
Check whether the guardrails, nets and covers are firm and complete
Check safety barriers, covers, and protective caps.
Check whether the ground buffer material (rubber mat, lawn, sand) is flat and thick enough.

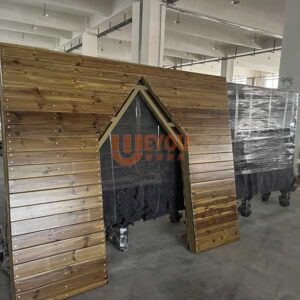

Packaging & Shipping
Professional loaders are responsible for loading the containers, ensuring that each piece of cargo is loaded into the container in the safest and most efficient way.
Our experienced team carefully plans the layout, stacking, and protection of each part before sealing the containe。they also could part the irregular shaped parts in a compact way to save your shipping cost.
We also provide free installation tools. All accessories such as screws, nuts, and fasteners are well categorized and packed separately in bags, making it easy for you to find and install them efficiently.
Strong Protection for Long-Distance Transport
Our protective film is made of woven fabric and EVA foam, which is tough, wear-resistant, and waterproof. The bottom is thickened with EVA to prevent scratches and wear during transportation.
It is environmentally friendly and can be laid on the ground to protect the floor when the house is renovated. It can be reused.
All components are carefully wrapped with multiple protective layers — including EVA foam, PE plastic wrapping and pp film
This ensures every metal post and plastic part stays intact during long-distance sea and land transportation.
This advanced packaging method provides superior cushioning, scratch resistance, and moisture protection during long-distance transportation
Scratch Protection
Each plastic part is first wrapped with bubble film and then covered with a PP film layer.
This double-layer protection prevents scratches, moisture, and dust, while keeping the parts clean and safe during transport and storage
The double-layer packaging method of “bubble film + PP film” ensures that plastic parts maintain a smooth surface, no scratches, deformation, and moisture during long-distance sea transportation or storage, and the overall protection performance is improved by about 30%-40%.
Our product packaging is good quality, ensuring that each product is securely protected during transit. We use durable materials and carefully designed packaging to prevent any damage, ensuring that the products arrive in perfect condition for our customers.
FAQ
1.Can you make any designs for our project ?
You tell us the size of your site and your requirements, and we can design it for you.
2: What age group is the playground slide suitable for?
Most of our outdoor slides are designed for children aged 3–12 years. We can also provide customized designs for younger or older age groups upon request.
3: Are your playground slides safe?
Yes. All of our products are designed according to international safety standards such as EN1176 and ASTM. The materials are non-toxic, UV-resistant, and tested for durability and safety.
4: Can the slides be customized?
Absolutely. We offer a wide range of colors, themes (such as forest, pirate ship, castle), and sizes. We can also design according to your site layout and budget.
5.What is the warranty period of the playground equipment?
The warranty period of our outdoor playground is 1 years, and the service life can reach 10 years or more.
6.What is the production lead time?
The production usually takes 10-15 days, depending on the product type and order quantity
